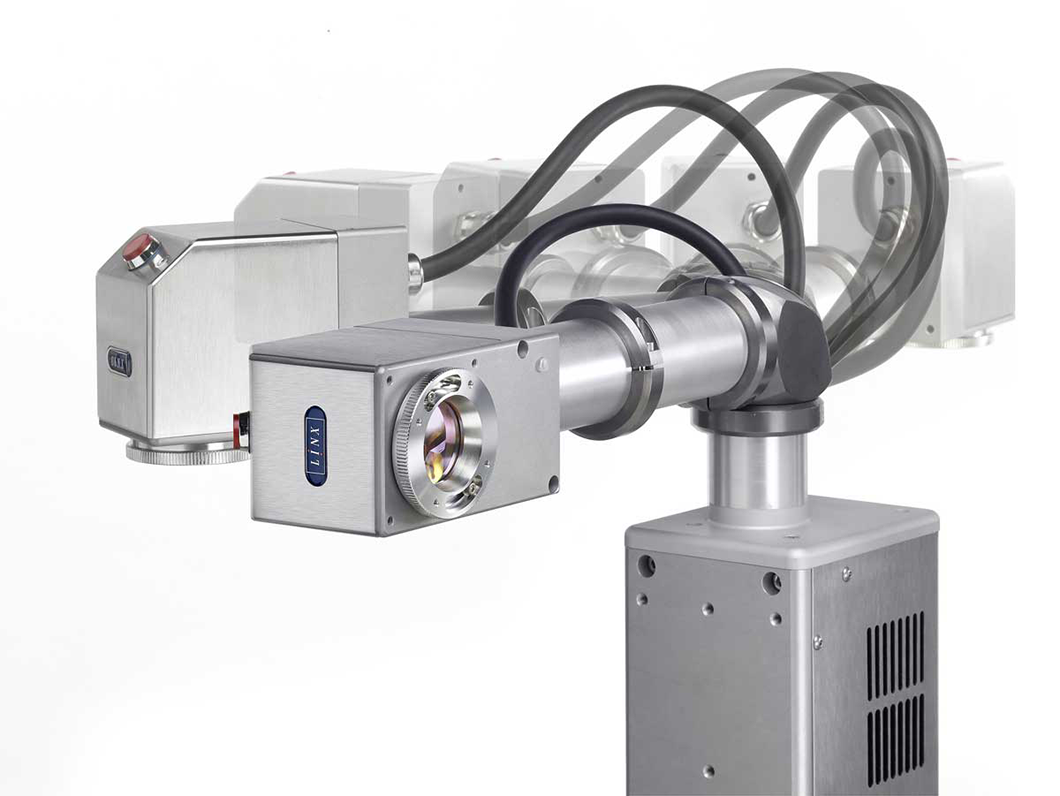

Linx SL101 Industrial LASER coder

How much time and money are you wasting with your current coding system? Maybe it’s time for a change. The economical Linx SL101 10W laser marking system has been specifically designed to meet a wide range of coding requirements.

Linx SL101 Industrial LASER Coder Features

A tube life of 45,000 hours – the longest tube life on the market, greatly reduces overall running costs.
Service intervals typically twice that of the industry standard, due to the laser’s design which makes it very reliable in even the most demanding factory environments
Does not require expensive factory air for cooling unlike many alternative laser coders
IP54 rating – maximum reliability and uptime in challenging environments
24/7 operation without the need for manual intervention


Line speed*: (110m/min)
Standard model SL101: (SHC60 Marking head, 95mm lens)
Spot size/Mark field/Marking distance: (0.27mm/66x66mm/96mm)
Other lens and head options (range)
Spot size: (0.09–1.12mm)
Mark field: (29x36–295x407mm)
Marking distance: (67–385mm)
No. lines of text: (Only limited by character size and mark field size)
Character height: (Up to mark field size)
Print orientation: (0-360°)
Available fonts: (9 System vector fonts, OTF, TTF,PFA,PFB and SVG fonts, Optional customized fonts)
Real time with offset: (Yes - hh:mm:ss)
Date stamp with offset
Julian date
Custom date and time formats
Shift code with time increment
Increment/decrement (batch count)
Unit measurement (imperial and metric)
Last code used
Graphics edit and download capability: (Using LinxDraw Software)
Job control
Job select: (256 jobs)
Bar codes: (BC25, BC25I, BC39, BC39E, BC93, EAN 8, EAN 13, BC128, EAN 128, Postnet, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSEXP)
Data matrix 2D codes: (ECC000, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR)
Circular text
